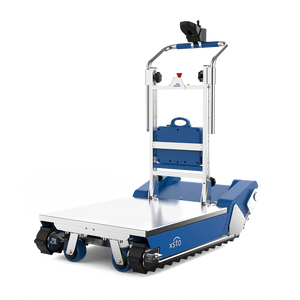

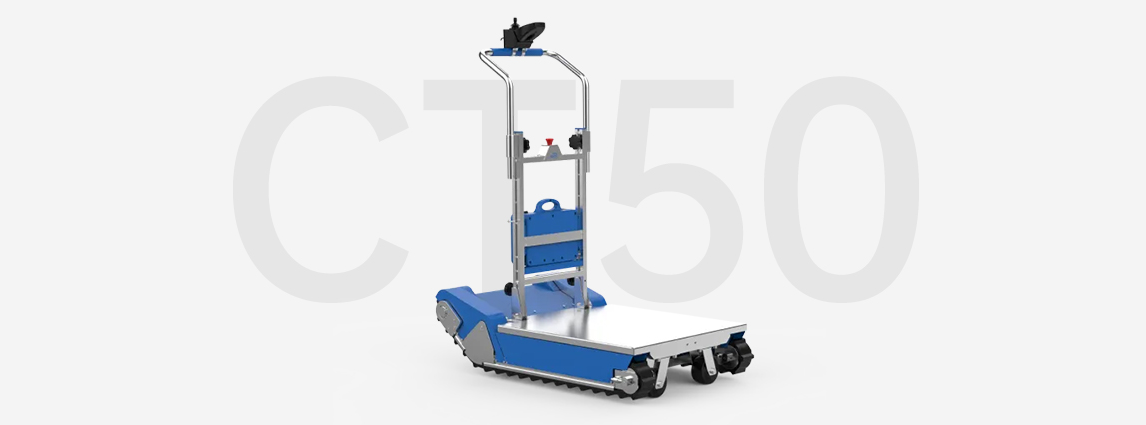

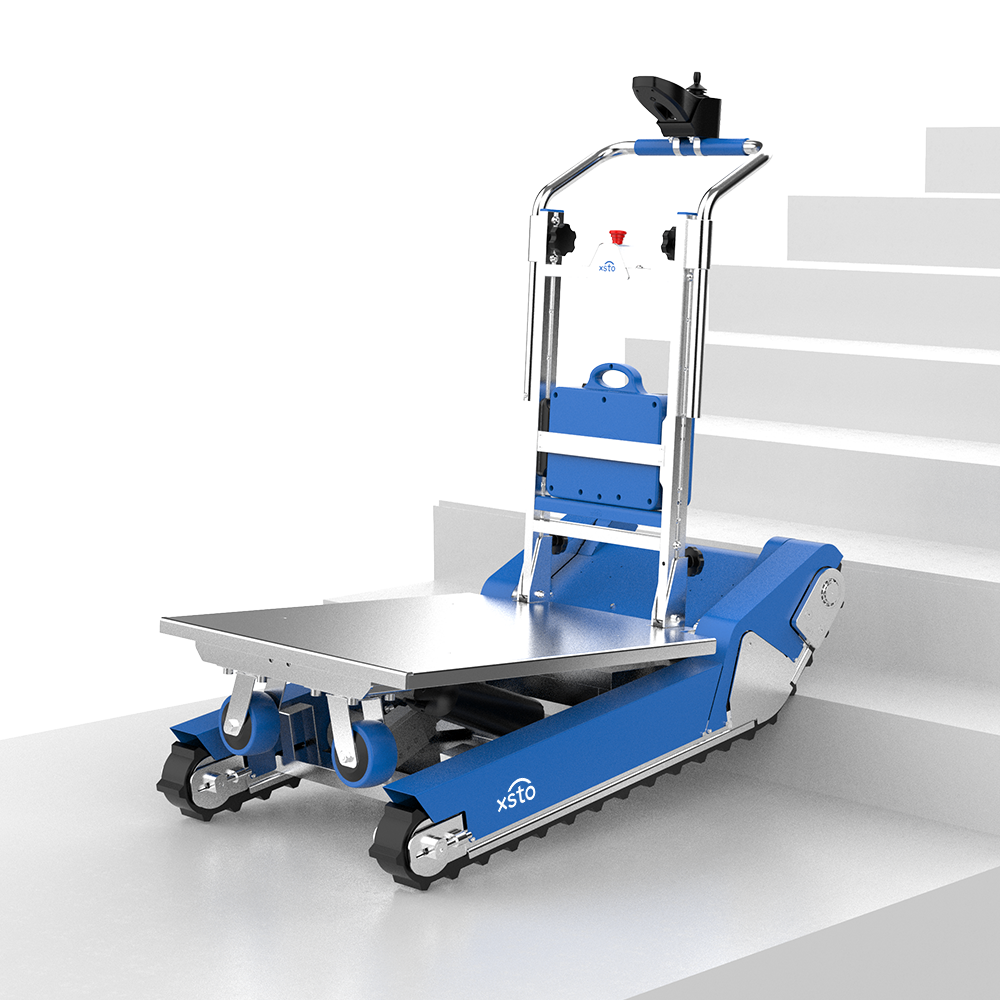

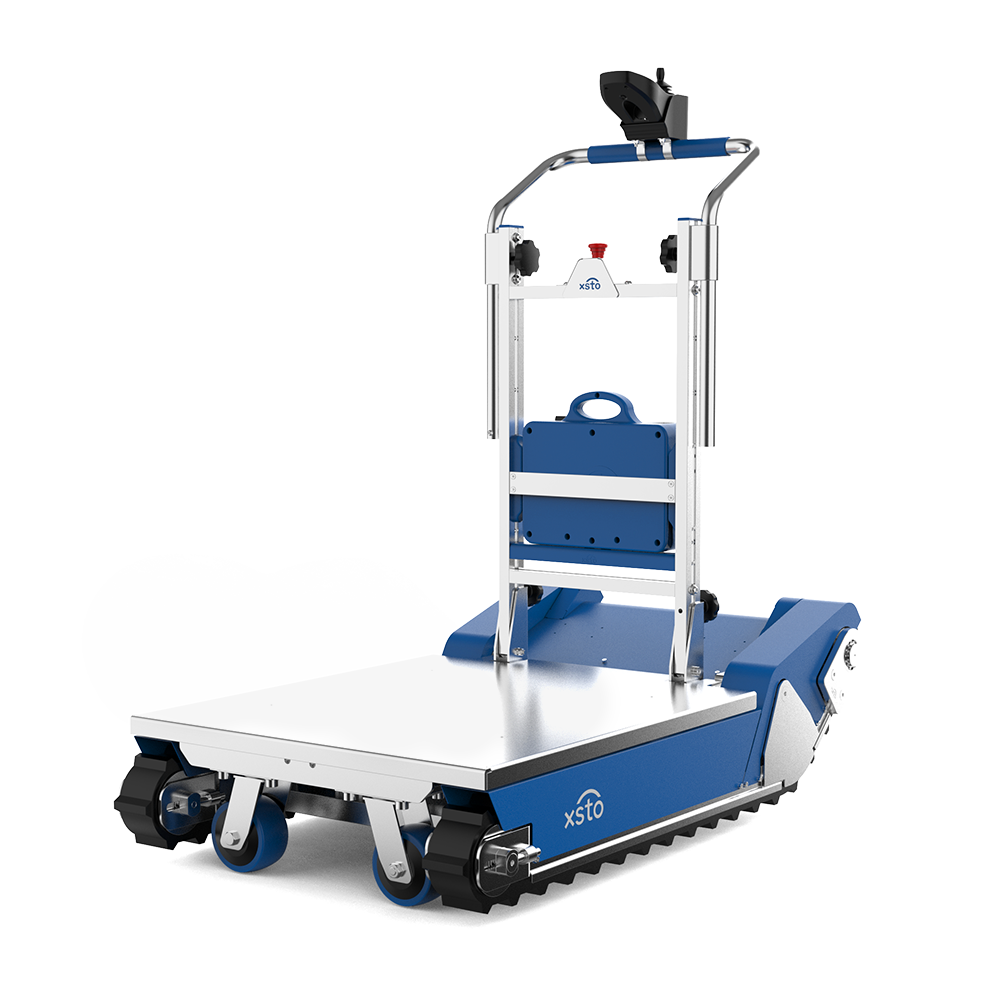

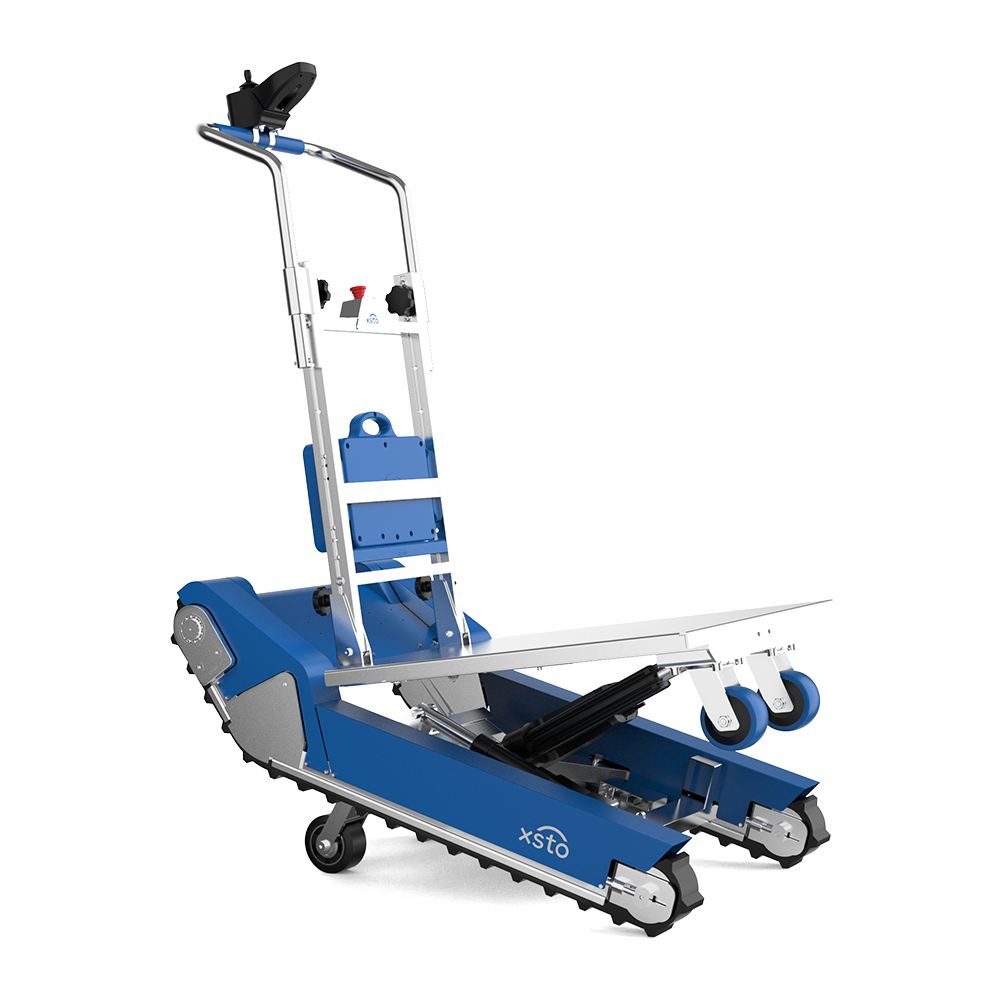

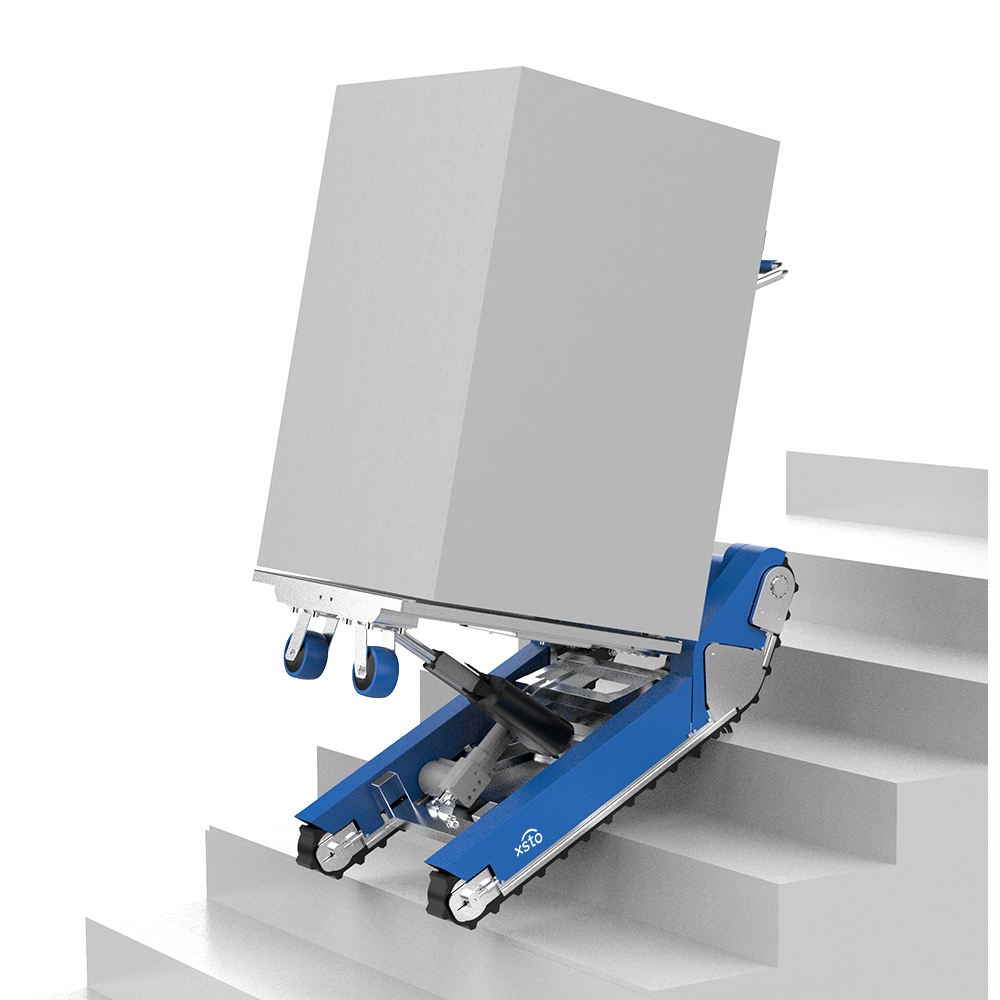

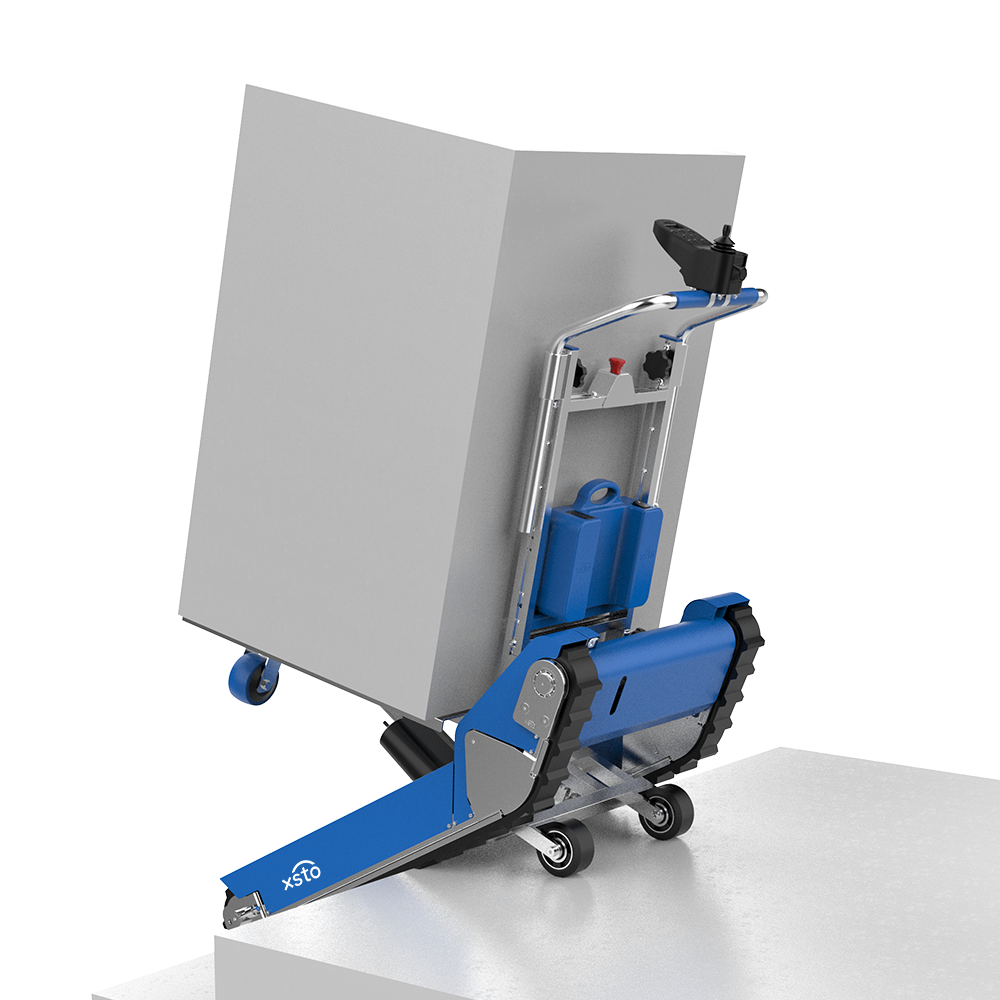

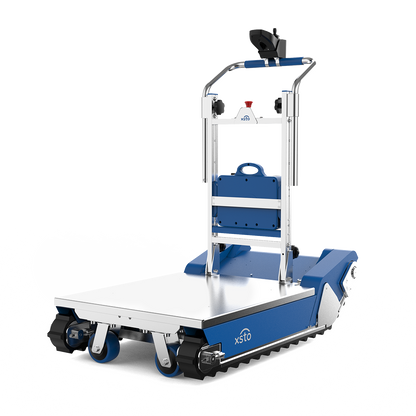

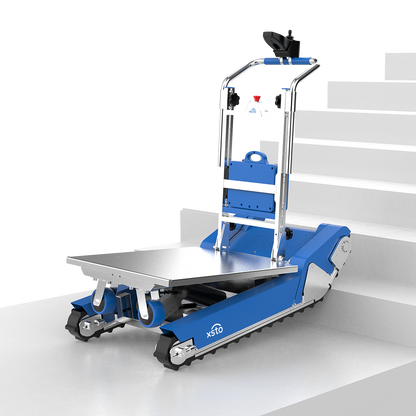

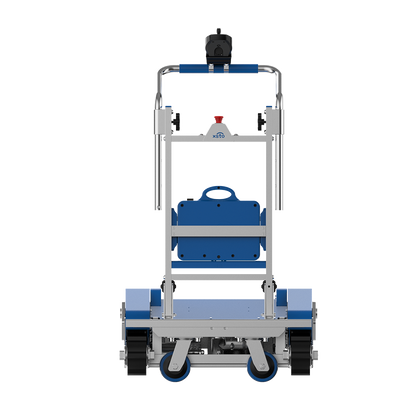

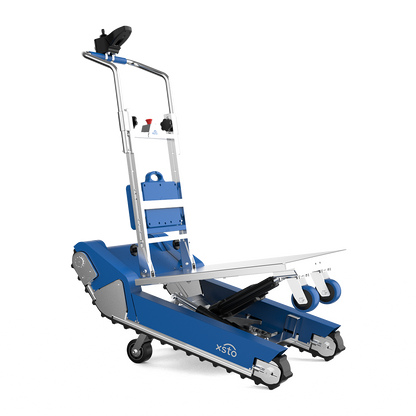

CT50 Al+handling robot
Al Control | Smart Balance | Auto Correction

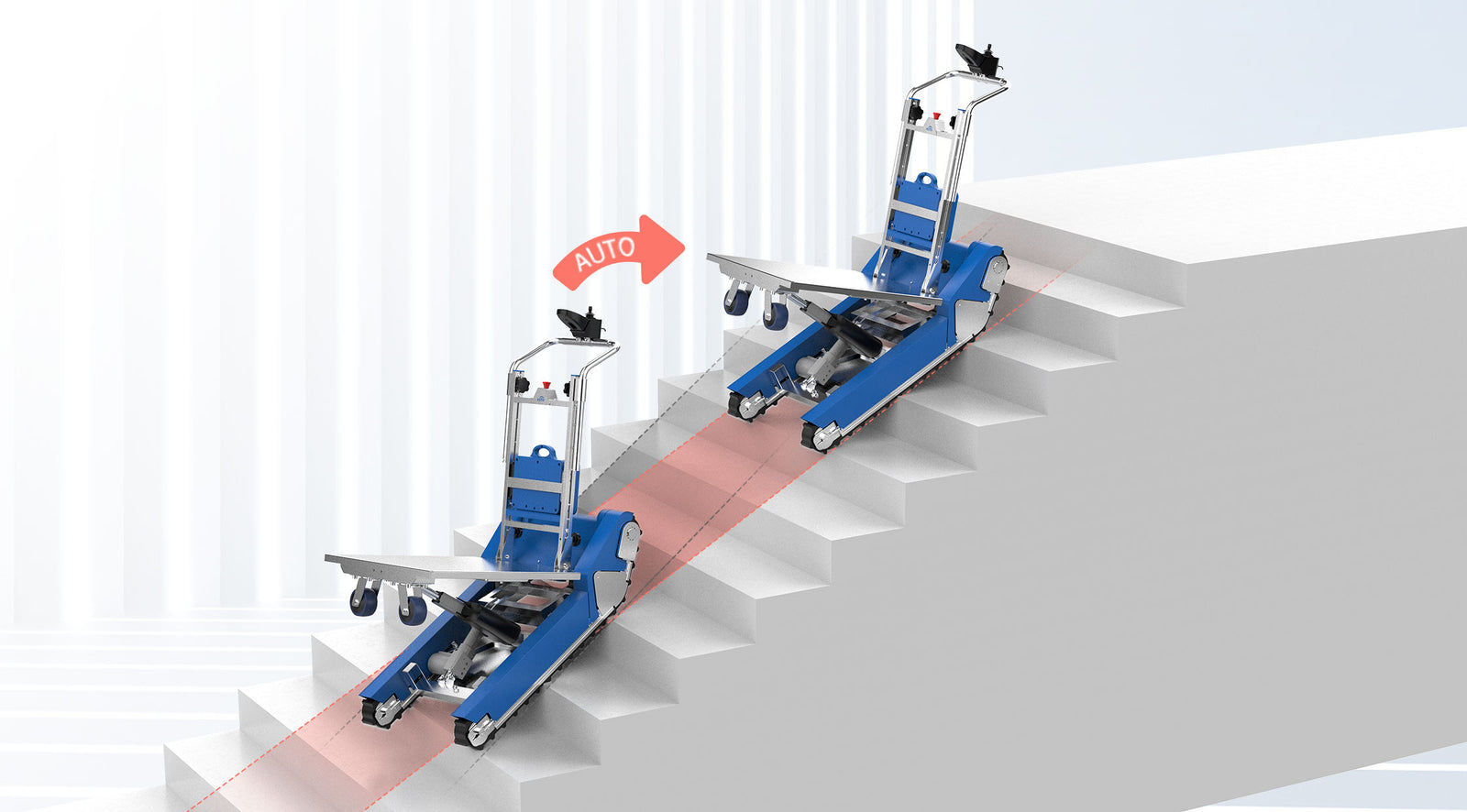

AI-Enhanced Control, Unwavering Stability

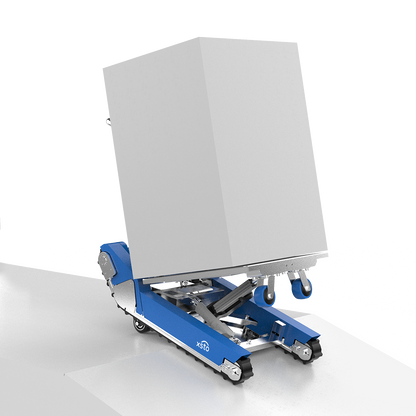

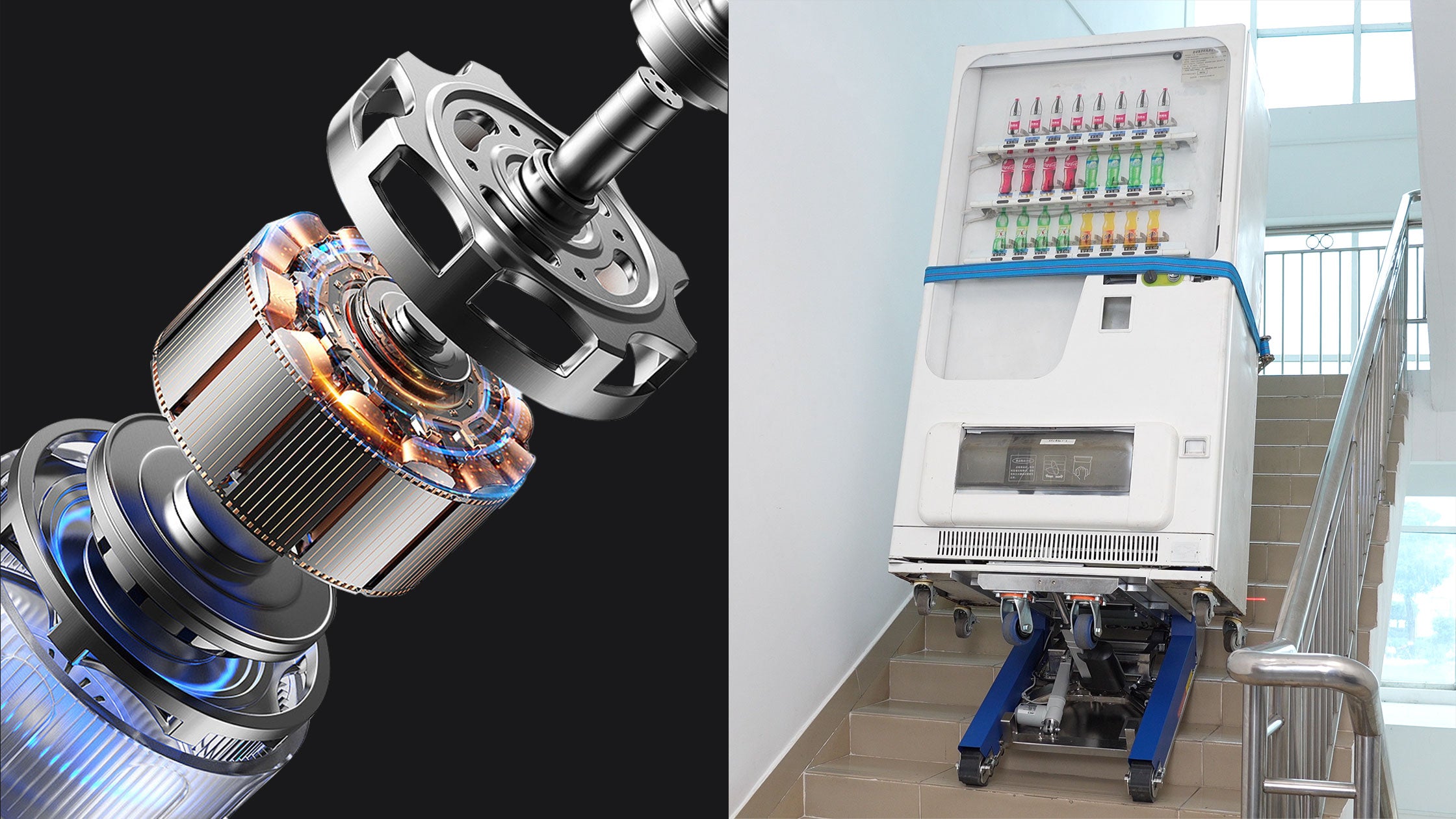

Heavy-Duty Capacity, High-Power Drive

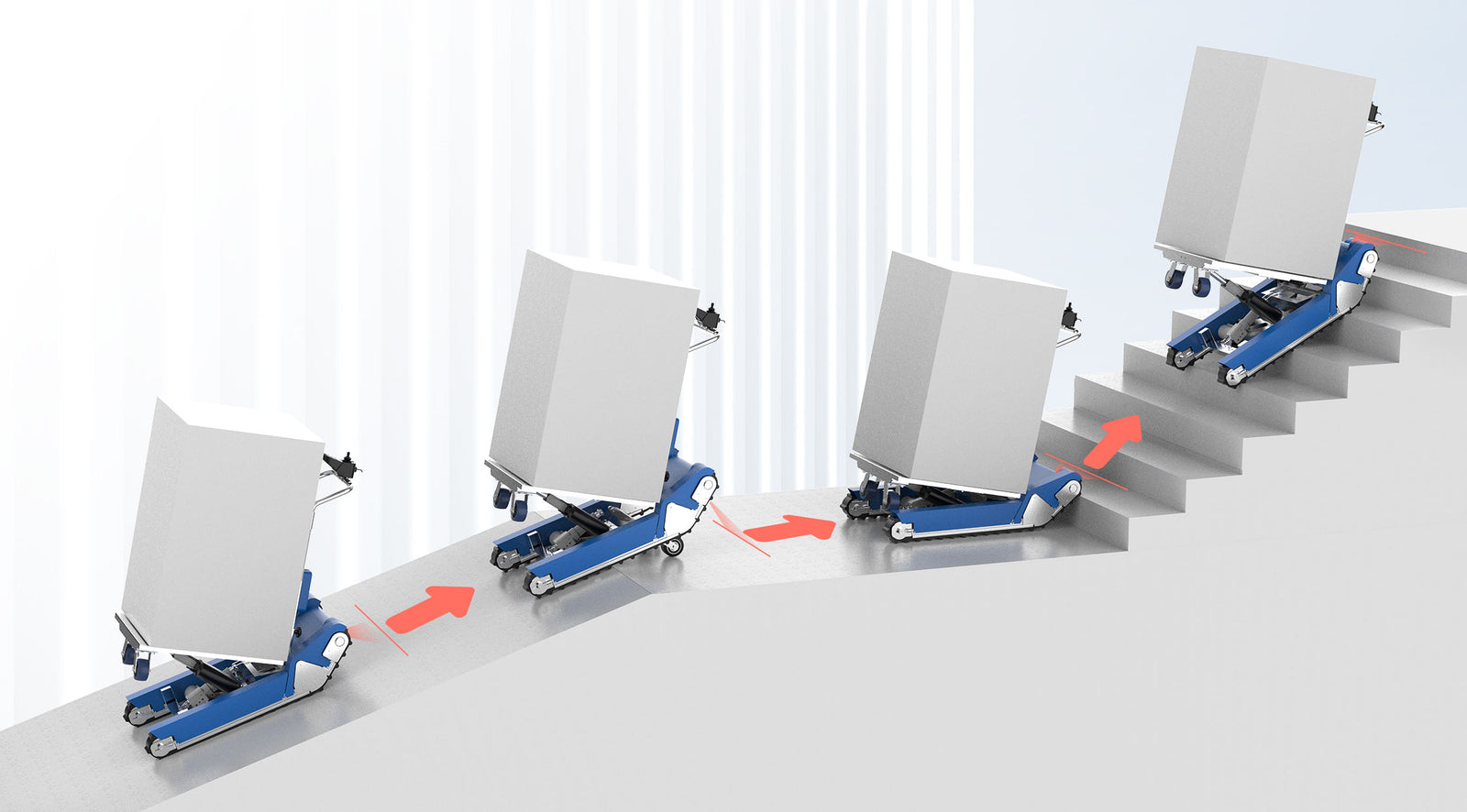

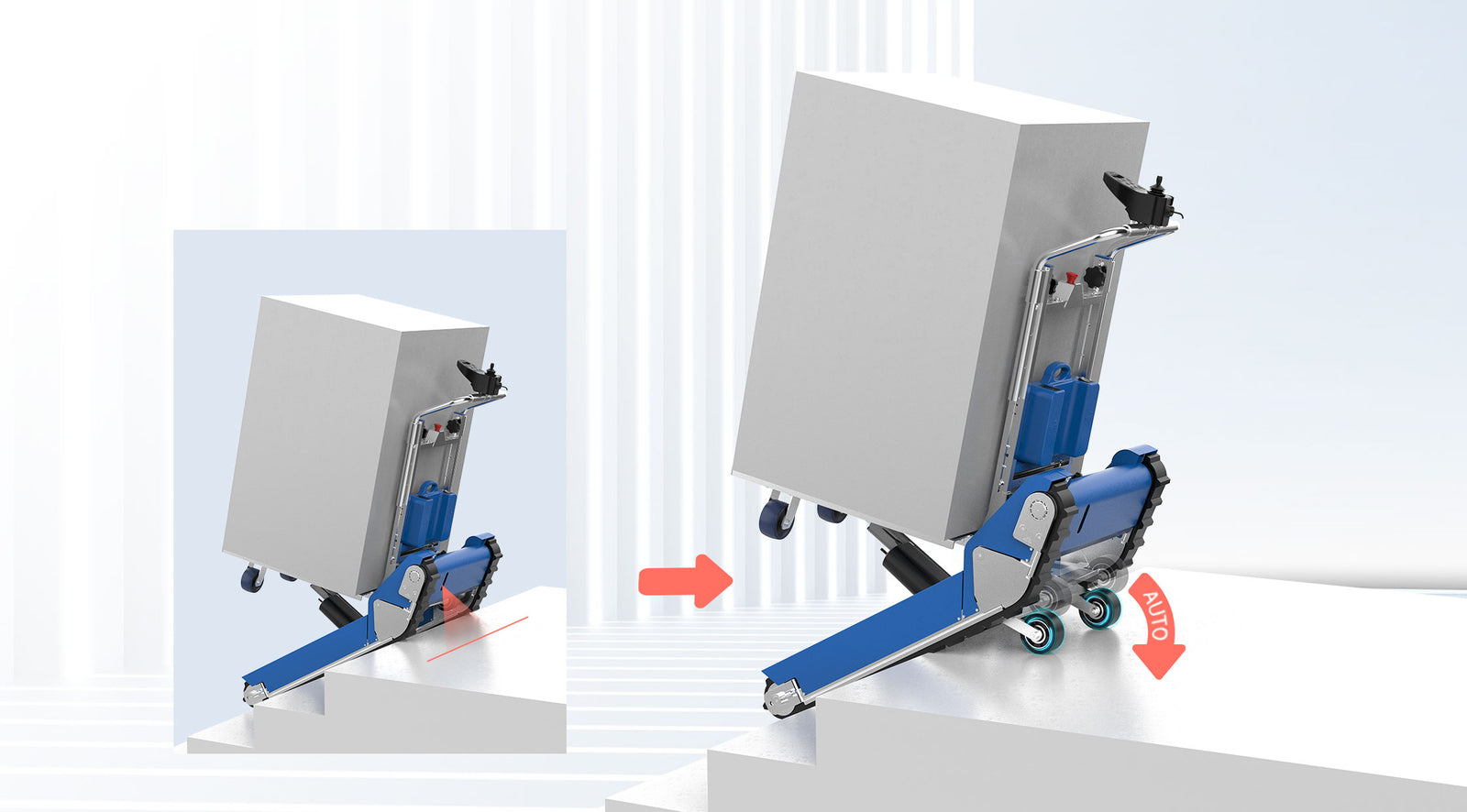

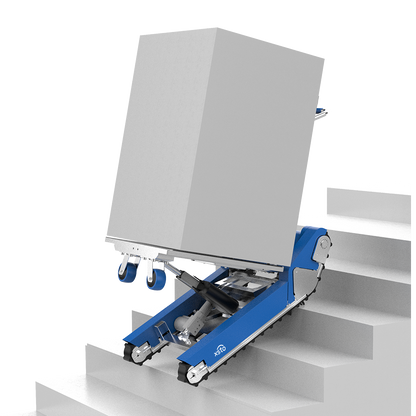

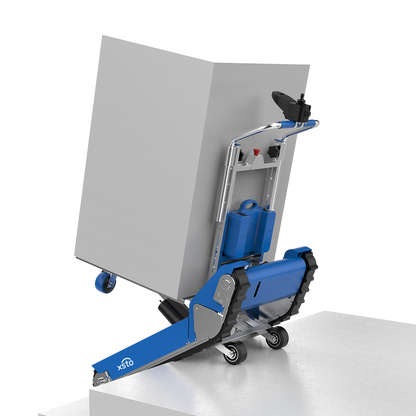

Handles 420kg loads ot 18 steps/minute. Advanced drive system provides powerful, consistent climbing performance.
Open Customization, Endless Possibilities
Open-source peripheral interfaces support fexible expansion wth rodar, cameras, robotic monipulators, gas sensors, thermal imoging, cleaning/vacuum attacments,satellite communication modules,and other accessories,tailored to meet specific customer development requirements.
Al Large Language Models
Advanced Path Planning
Versatile Control Options
Precision Target Tracking

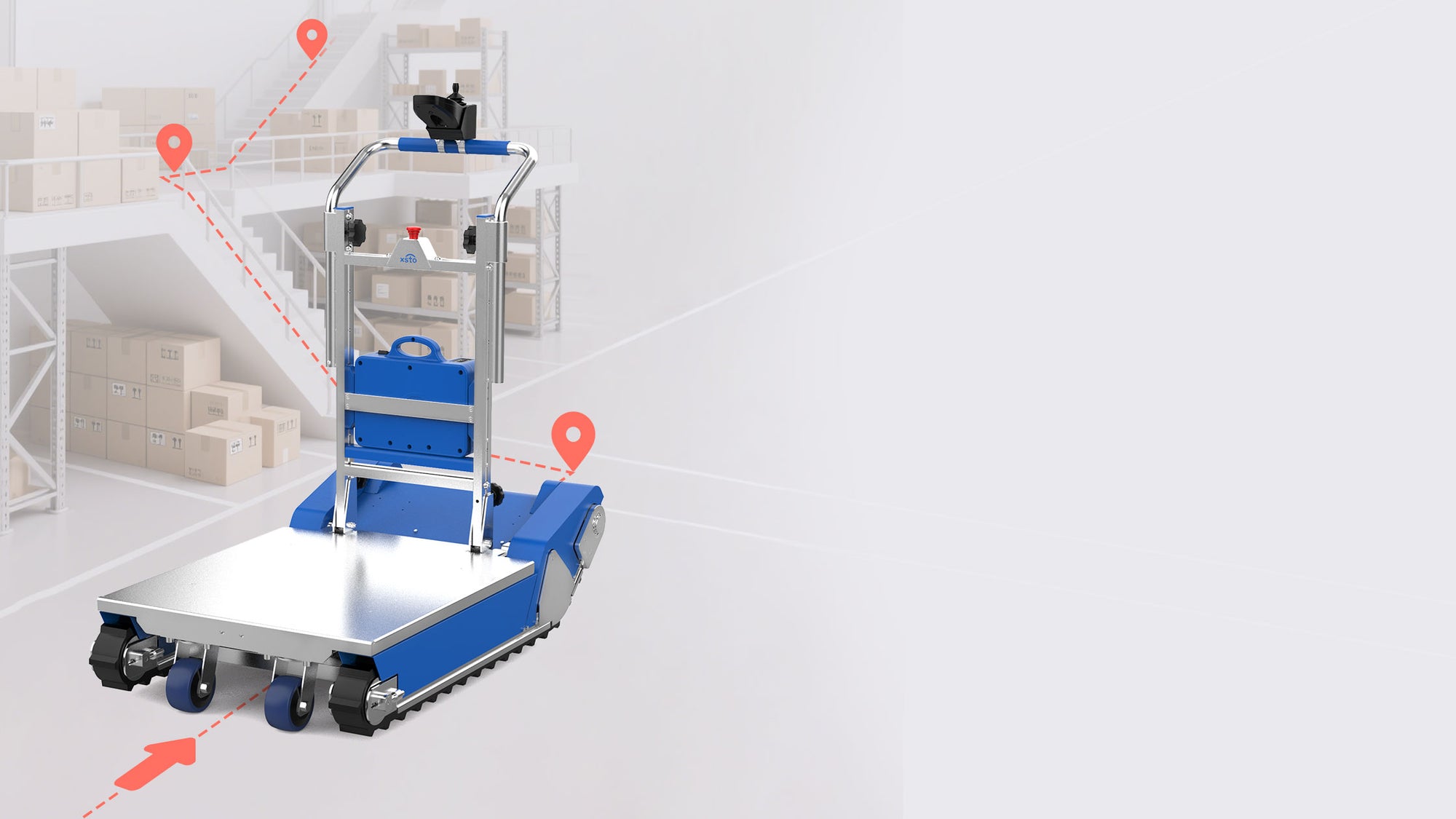

Multi-destination Navigation
Real-time Obstacle Avoidance
Laser Radar Systems
Custom Programming Interfoce
Specification
Model
CT50
Load capacity(kg)
420
Weight without battery(kg)
100
Speed(steps/min)
18
Upstairs endurance(steps)
840~907
Downstairs endurance(steps)
1785~1890
Min. platform size(mm)
U-shaped: 2000x1300
L-shaped: 1100x1200
Step height(mm)
Height≤210
Min. turning radius(mm)
Crawler track mode: 850
Flat ground mode: 905
Ditch crossing(mm)
Crawler track mode≤350
Max. slope(°)
≤40
Sensor types
LiDAR, gyroscope
Battery parameters
Lithium battery 48V 10Ah
Size(mm)
632*1168*411(Folded)
632*1030*1020~1244(Unfolded)
